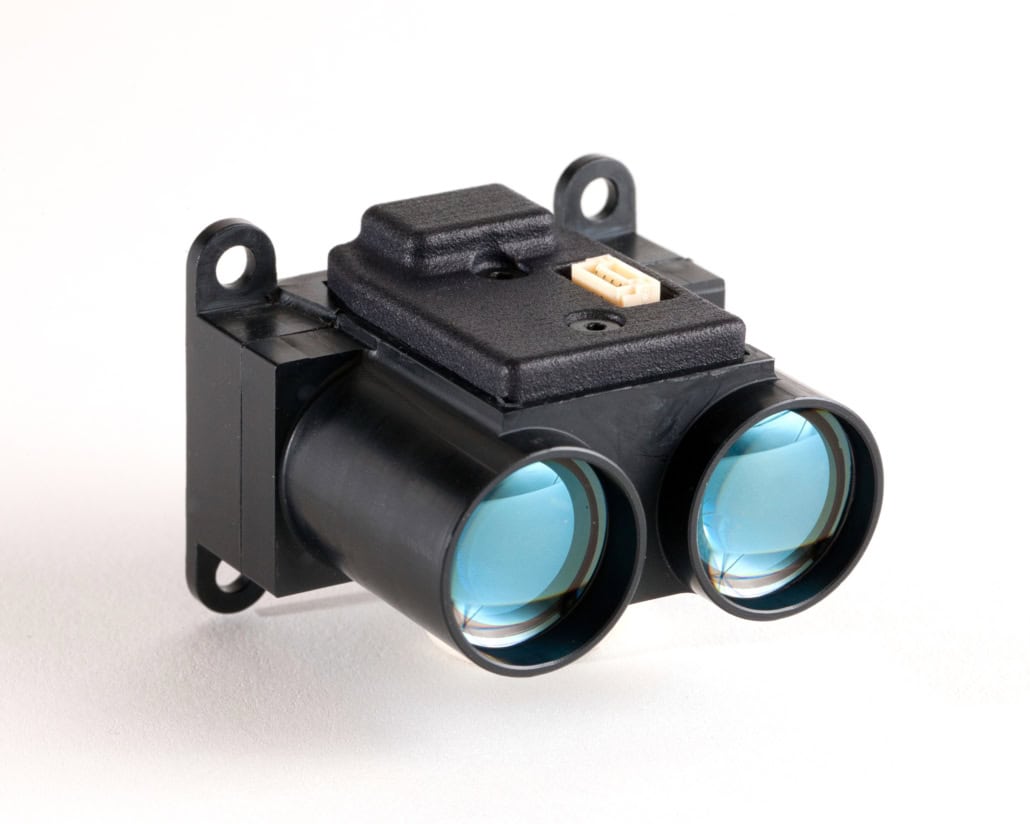

WASP™ 200 LRF DroneCAN

(CD1-001, DroneCAN)

The CD1-001 DroneCAN version of Attollo’s WASP™ series of rangefinders is designed to measure ranges at a rate of up to 50 points per second with remarkable accuracy and precision in an ultra-tiny 46-gram package. Designed with a host of advanced features (performance over water), the WASP™ series of rangefinders are well-suited for a number of applications.

Features

  • FDA Class 1 Eye Safe Laser Product
  • ArduPilot Supported (Plane, Copter, and Rover)
  • Communication Interface: DroneCAN

Software Features

  • Programmable burst mode and moving averaging for enhanced precision
  • Programmable burst mode averaging
  • Background solar noise detection and compensation
  • Programmable sensitivity and range offsets

Bulk Pricing

  • Pricing below is for quantity 1-10 each
  • Bulk pricing is available. Please contact us to discuss your particular requirements/pricing.
Sales Support
SKU: CD1-001-1-1 Categories: ,
SKU: CD1-001-1-1Categories: ,

SPECIFICATIONS

WASP™ CD1-001

Range Performance

*Full Sun Conditions

 0.15 m to 175 m, 18% reflective scattering target

*0.1 m to 300 m, 80% reflective scattering target
​Spectral Band 905 nm
Maximum Range 315 m
Accuracy < 10 cm
Resolution 1 cm
Update Rate Single shot to 50 Hz,  FDA Class 1
Beam Divergence 8 mrad x 1 mrad
Optical Aperture 18 mm
Input Voltage 4 V to 30 V
Operating Current < 75 mA @ 10 V Operating Voltage <100 mA @ 10 V Operating Voltage
Connector Options 4 PIN JST GH connector
Communication Interface DroneCAN
Dimensions (L x W x H) 44 x 27 x 42 mm³
Weight 39 grams
Operating Temperature ​-40 to +60 °C (-40 to 140 °F)

  • Robotics and Drones

  • Scanned LiDAR

  • Sense and Avoid

  • Height Above Ground (HAG) flight

  • Industrial Automation

  • Height & Distance Measurements

  • Maritime Operations – IP67

  • Precise Proximity Detection

Reference Files:

WASP™ FAMILY Datasheet

WASP™-200 LRF Operating Manual

WASP™-200 LRF STEP File

Related Products:

PreviousNext
12

Equipment described herein is subject to US export regulations under the EAR as an EAR99 product. Specifications are subject to change without notice.
